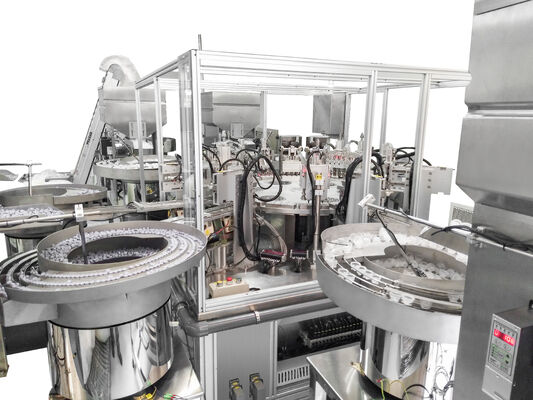

Non-standard customised high-standard, high-quality euro cap automated assembly machine

Großes Bild : Non-standard customised high-standard, high-quality euro cap automated assembly machine

Produktdetails:

Herkunftsort:	China
Markenname:	SENCAN
Zertifizierung:	CE, ISO9001
Modellnummer:	SC-TP-833

Zahlung und Versand AGB:

Min Bestellmenge:	1 Satz
Preis:	Negotiate price according to actual situation
Verpackung Informationen:	Holzkiste
Lieferzeit:	90 Tage
Zahlungsbedingungen:	T/T, L/C
Versorgungsmaterial-Fähigkeit:	2-20 Sätze

Kontakt

Ausführliche Produkt-Beschreibung

Anwendbares Produkt:	Infusionskappe, Euro -Kappe	Produktname:	Euro-Kappen-Montage-Maschine
Effizienzverhältnis:	Mehr als 95%	Produktkapazität:	4000 bis 12000 Kappen pro Stunde
Vorteil:	Flache Schweißfläche des Infusionsverschlusses	infeed type:	Vibrationsscheibe

Euro Cap Assembly Machine

Engineered to reduce manual intervention while improving safety and consistency in cap assembly tasks for pharmaceutical packaging applications.

Key Features

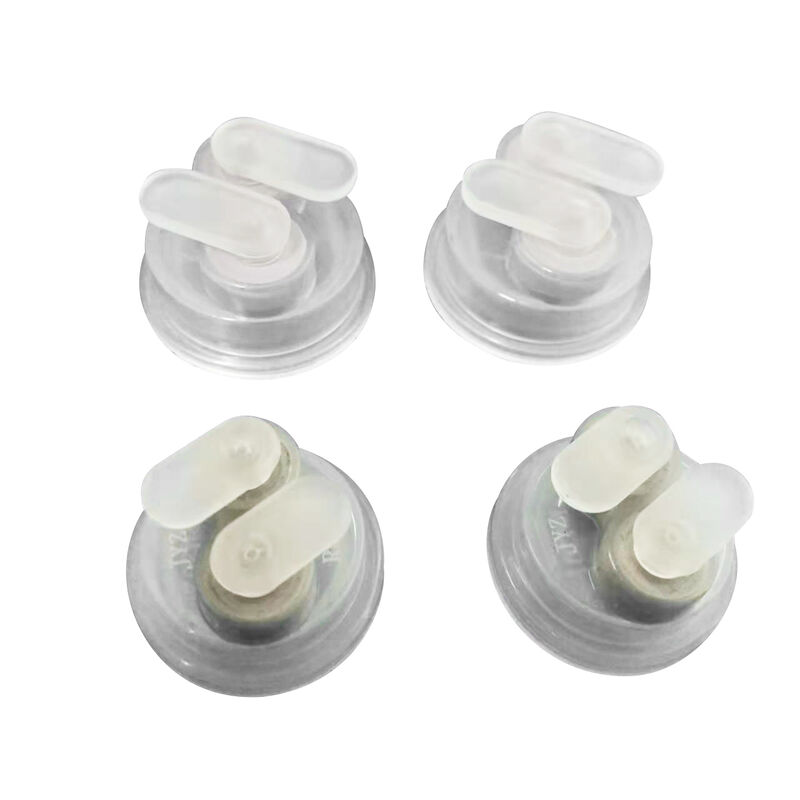

Automatic assembly of caps for plastic IV infusion bags and bottles
Constructed from stainless steel and aluminum alloy, compliant with ISO and GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces polished to protect product integrity
Servo-linked rod structure system ensures even, stable pressure for consistent cap pressing quality
Integrated inspection function after each assembly process eliminates defective products
PLC control system with user-friendly human-machine interface requires minimal operator training
Servo motor + indexing drive main power ensures high assembly precision and qualification rates
Pneumatic power system reduces maintenance downtime
Highly customizable to meet specific customer requirements and production demands

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-12000 pcs/h (customizable to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2300kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
