High Precision Euro Cap Assembly Machine with 99% Qualified Rate and 95% Operation Rate for IV Infusion Bags

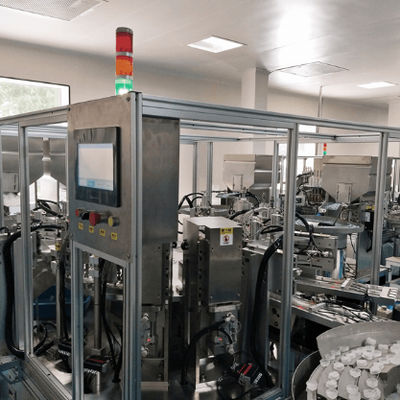

Großes Bild : High Precision Euro Cap Assembly Machine with 99% Qualified Rate and 95% Operation Rate for IV Infusion Bags

Produktdetails:

Herkunftsort:	China
Markenname:	SENCAN
Zertifizierung:	CE, ISO9001
Modellnummer:	SC-TP-821

Zahlung und Versand AGB:

Min Bestellmenge:	1 Satz
Preis:	Negotiate price according to actual situation
Verpackung Informationen:	Holzkiste
Lieferzeit:	90 Tage
Zahlungsbedingungen:	T/T, L/C
Versorgungsmaterial-Fähigkeit:	2-20 Sätze

Kontakt

Ausführliche Produkt-Beschreibung

Betriebsreifen:	Drehscheibe	Anwendbare Kappen:	Euro-Kapital
Produktgröße:	Groß	Genauigkeit:	Hoch
Produkttyp:	Montagemaschine	Farbe:	Metallfarbe aus Edelstahl
Betriebsoberfläche:	Touch-Screen	Garantie:	1 Jahr
Produktionskapazität:	4500 bis 16000 pro Stunde	Stromversorgung:	220 V/50 Hz
Luftdruck:	0,6-0,8mpa	Konfiguration:	Infusionsmaschine zur Montage von Flim-Kappen
Produktmodell:	Medizinische Infusionskappen	Produktmarke:	Euro
Stromspannung:	220V
Hervorheben:	99% Qualified Rate Euro Cap Assembly Machine , 95% Operation Rate Euro Cap Assembly Machine , 220V/50Hz Euro Cap Assembly Machine

Customizable Euro Cap Assembly Machine

A precision-engineered solution for automatic assembly of peel seal foil caps, designed to meet your specific production requirements while maintaining high quality standards.

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel + aluminum alloy materials, fully compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for optimal product protection
Automated foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defective products
User-friendly PLC control system with human-machine interface, requiring minimal operator training
High-precision servo motor + indexing drive system ensures superior assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to match your product specifications, capacity needs, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
