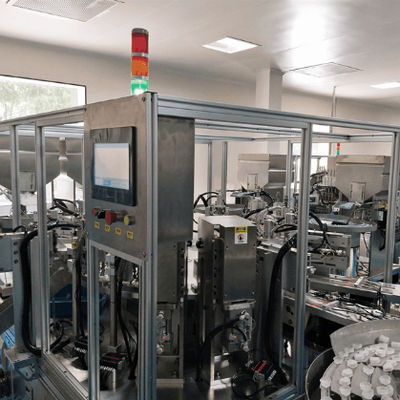

Automatic IV Infusion Peel-foil Cap Assembly Machine with 4000-12000 Caps per Hour and 99% Qualified Rate

Markenbezeichnung:	SENCAN
Modellnummer:	SC-TP-818
Mindestbestellmenge:	1 Satz
Preis:	Negotiate price according to actual situation
Zahlungsbedingungen:	T/T, L/C
Lieferfähigkeit:	2-20 Sätze

Detailinformationen

Herkunftsort:

China

Zertifizierung:

CE, ISO9001

Produktkapazität:

4000 bis 12000 Kappen pro Stunde

Modell:

Maschine zur Montage der Kappe

Automatisierungsnote:

Automatisch

Produktmarke:

Euro

Betriebsgeschwindigkeit:

Einstellbar

Aktive Kraft:

mit einer Leistung von mehr als 1000 W

Betriebsrate:

98 %

Luftdruckmesser:

SMC

Kappentyp:

Infusionskappe

Verpackung Informationen:

Holzkiste

Hervorheben:

Beschreibung des Produkts

IV Infusion Peel-foil Cap Assembly Machine

Key Features

Automated assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for product protection
Automatic foil cutting and welding process
Integrated quality check function after each assembly step to eliminate defects
User-friendly PLC control system with human-machine interface operation
Precision assembly with servo motor + indexing drive power system
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
