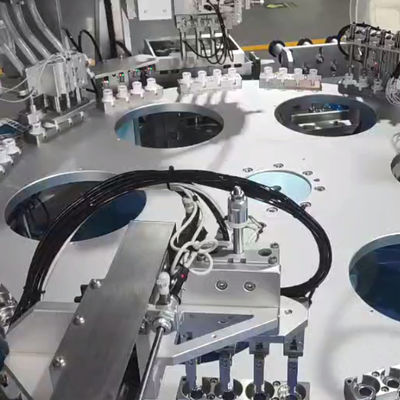

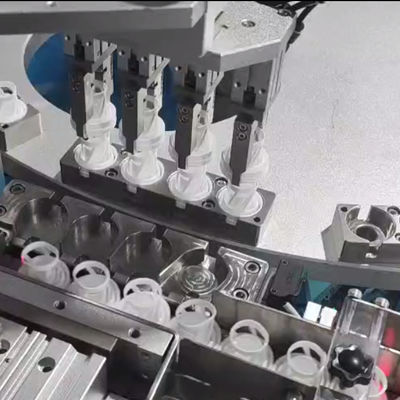

High Efficiency Desiccant Cap Assembly Machine with 0.5-0.8MPa Air Pressure and 1500-8500pcs/hr Production Speed

Markenbezeichnung:	SENCAN
Modellnummer:	SC-TP-789
Mindestbestellmenge:	1 Set
Preis:	Negotiate price according to actual situation
Zahlungsbedingungen:	T/t, l/c
Lieferfähigkeit:	3-20 Sätze

Detailinformationen

Beschreibung des Produkts

Detailinformationen

Herkunftsort:

CHINA

Zertifizierung:

CE, ISO9001

Stromspannung:

220 V

Produktfarbe:

Silber

Kabelgröße:

Dreiphasen-Fünfleitersystem

Luftdruck:

0,5-0,8mpa

Geeignete Produkte:

Zahnbürste, Rasierer, Kamm usw.

Versammlungs-Arten:

Trocknungsmittelkappe

passende Kappen:

Euro-Kapital

Sicherheitsschutz:

Notstopp -Taste

Funktion:

Machen Sie automatisch verschiedene tägliche Notwendigkeiten zusammen

Betriebsrate:

96%

Kontrolle:

Plc

Betriebsmethode:

Touchscreen -Steuerung

Merkmale:

Hohe Effizienz und einfache Bedienung

Erkennungssystem:

photoelektrischer Sensor

Verpackung Informationen:

Holzkoffer

Hervorheben:

0.5-0.8MPa Desiccant Cap Assembly Machine

96% Silica Gel Filling Machine

1500-8500pcs/hr Sealing Cap Assembly Machine

Beschreibung des Produkts

Features

1. Applied for automatic assembly of desiccant caps for pharmaceutical and health care use.

2. Automatic filling of granular and powder desiccant like molecular sieve and silica gel, as well as caps with desiccant capsules or cores insertion.

3. Automatically punch and cut sealing paper, reduce customers’ cost and improve rate of qualified products.

4. Sealing paper waste will be automatically collected to reduce labor of operators.

5. Equipped with desiccant supply bin which can protect desiccant from moisture and pollution.

6. Round shaped caps will be loaded by feeding device which is stable and fast.

7. Each assembling process is well checked, to be sure 100% qualification of qualified products.

8. Equipped with automatic counting function for production statistics.

9. Qualified and unqualified products are released from separate exits.

10. Main drive from servo motor + indexing drive, with stable running speed and high assembly accuracy.

11. PLC control system and touch screen, easy operation for operators.

12. Customized according to customer's specifications and capacity requirements.

13. Connect with injection molding machine, camera inspection system or other equipment to form an overall automatic production line.

Properties

Applicable products	desiccant cap, silica gel desiccant cap, safety cap, CRC cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
