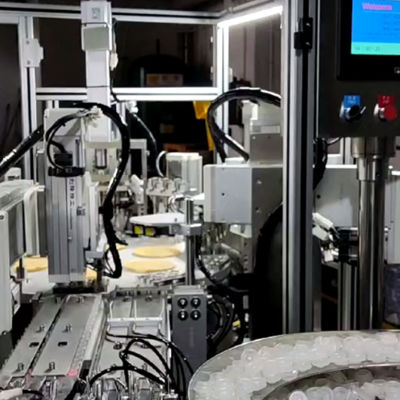

Customizable CRC Cap Assembly Machine with Touch Screen Operation and High Production Capacity

Markenbezeichnung:	SENCAN
Modellnummer:	SC-TP-789
Mindestbestellmenge:	1 Set
Preis:	Negotiate price according to actual situation
Zahlungsbedingungen:	T/t, l/c
Lieferfähigkeit:	3-20 Sätze

Detailinformationen

Beschreibung des Produkts

Detailinformationen

Herkunftsort:

CHINA

Zertifizierung:

CE, ISO9001

Größe:

anpassbar

Kontrolle:

Plc

Stromversorgung:

220 V, 50 Hz

Geeignete Kapptypen:

CRC-Obergrenzen

Produkttyp:

Montagemaschine

Betriebsmodus:

Automatisch

Operator:

1 Satz pro Person

Betriebsmethode:

Touchscreen -Steuerung

Stromquelle:

Elektrisch

Produktionskapazität:

4500-12000per/Stunde

Anwendung:

CAP Assembly für CRC -Produkte

Betrieb:

Touch-Screen

Qualifizierte Produktrate:

Über 99%

Steuerungssystem:

Plc

Verpackung Informationen:

Holzkoffer

Hervorheben:

Customizable CRC Cap Assembly Machine

Touch Screen Operation CRC Cap Assembly Machine

High Production Capacity CRC Cap Assembly Machine

Beschreibung des Produkts

Features

1. This equipment is applied for assembly of medicinal flange cover, duck tongue cover, spring cover and other moisture-proof agents, desiccant bottle caps.

2. Can be used for molecular sieve, silica gel and other granular desiccant automatic filling, can also be used for block desiccant, desiccant core assembly.

3. The equipment has automatic punching and cutting film mechanism (sealing paper), which can reduce the production cost of customers and improve the qualified rate of products.

4. Centralized processing of sealing paper waste to reduce the workload of operators.

5. Connect the desiccant centralized supply bin, reduce the desiccant in the assembly process of moisture absorption and pollution.

6. Circular cover adopts feeding machine, feeding stable and fast.

7. The main power is composed of servo motor + splitter, with stable running speed and high assembly accuracy.

8. Each assembly step is equipped with testing function to ensure 100% of qualified products.

9. With automatic counting function, easy to output statistics.

10. Good and defective products shall be exported separately.

11. control system adopts PLC control, man-machine interface operation, reduce the operator's work difficulty.

12. Equipment can be customized according to customers' actual production capacity and product specifications.

13. It can be connected with injection molding machine and image detection machine to form a whole automatic production line.

Properties

Applicable products	desiccant cap, silica gel desiccant cap, moisture-proof lid, safety cap,CRC cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V.50Hz.4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
