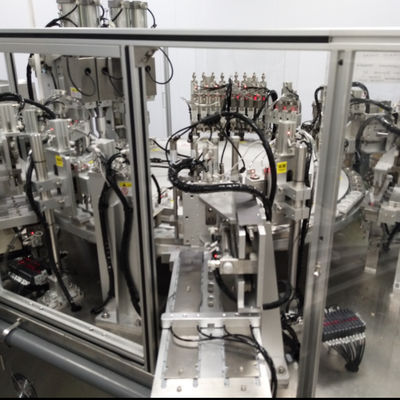

Automatic Euro Cap Assembly Machine 14000-18000pcs/h 50Hz

Markenbezeichnung:	SENCAN
Modellnummer:	SC-TP-782
Mindestbestellmenge:	1 Set
Preis:	Negotiate the price according actual situation
Zahlungsbedingungen:	T/t, l/c
Lieferfähigkeit:	3-20 Sätze

Detailinformationen

Beschreibung des Produkts

Detailinformationen

Herkunftsort:

China

Zertifizierung:

CE, ISO9001

Kapazität:

14000 bis 18000 Stück/h

Betriebsart:

Automatisch

Produktionseffizienz:

Hoch

Gewicht:

500 kg

Operator:

Single oder doppelt

Produktfrequenz:

50 Hz

Montageart:

Automatisch

Montagekapazität:

4500-12000 pro Stunde

Durchmesserbereich der Kappe:

10-50 Millimeter

Betriebsoberfläche:

Touch-Screen

Modell:

Maschine zur Montage der Kappe

Betriebsmodus:

Automatisch

Merkmale:

Hohe Effizienz und einfache Bedienung

Mechanismus:

Servo

Anwendbare Produkte:

Euro-Kapital

Verpackung Informationen:

Holzkoffer

Hervorheben:

Automatic Euro Cap Assembly Machine 14000pcs/h

Euro Cap Assembly Machine 50Hz

High-speed Euro Cap Assembly Machine

Beschreibung des Produkts

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
