Einzelheiten zu den Produkten

Zu Hause Produits

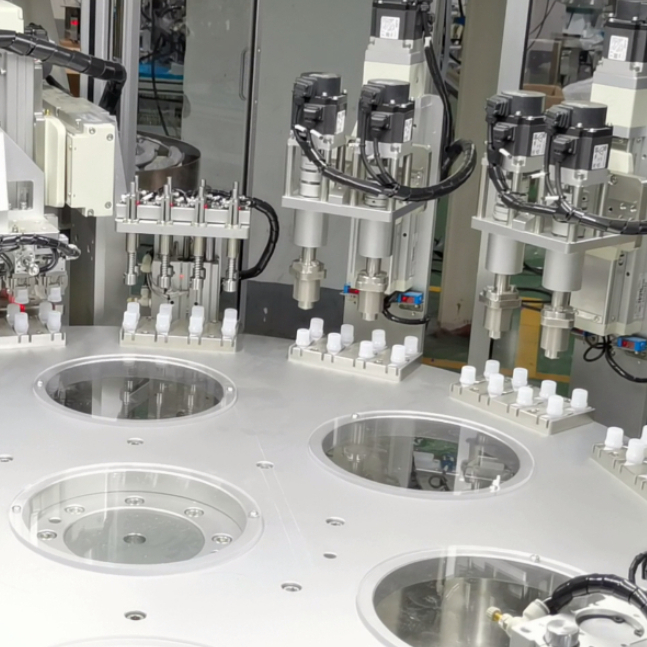

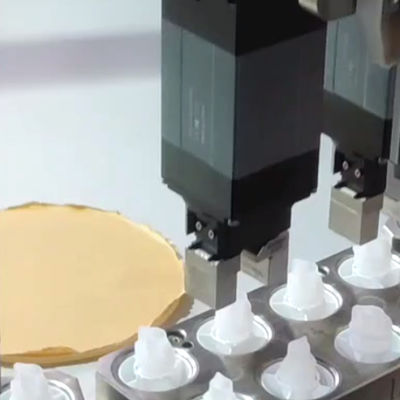

Stainless Steel Cap Screwing Machine for Bottle Capping

Markenbezeichnung:	SENCAN
Modellnummer:	SC-TP-745
Mindestbestellmenge:	1 Set
Preis:	Negotiate the price according to actual situation
Zahlungsbedingungen:	T/t, l/c
Lieferfähigkeit:	3-20 Sätze

Detailinformationen

Beschreibung des Produkts

Detailinformationen

Herkunftsort:

China

Zertifizierung:

CE, ISO9001

Garantie:

1 Jahr

Material:

Edelstahl

Hostmaschinengröße:

L1200*B900*H1670mm

Luftdruck:

0,6-0,8mpa

Stromversorgungsspannung:

AC380V 50/60Hz

Geschwindigkeit:

Einstellbar

Anwendung:

Flaschenbedeckung für verschiedene Flüssigkeiten

Hauptmaterial:

Edelstahl

Verpackung Informationen:

Holzkoffer

Hervorheben:

stainless steel bottle capping machine

cap screwing machine for bottles

stainless steel cap screwing machine

Beschreibung des Produkts

Features

1. Customize rotary or loop type machine for customer’s capacity requirements.

2. Main power from servo motor + reducer unit, which provide intermittent motion and fixtures are in a static during assembling, high accuracy and qualified rate can be achieved.

3. Screw in place precisely, no twist angle and twist broken occur.

4. Does not destroy appearance of product, high qualified rate performed.

5. Option screw force detector for torque requirements.

6. Detection after each assembly process, 100% real qualified products.

7. All part made of stainless steel or aluminum alloy, in accordance with GMP requirements.

8. PLC control system, touch screen HMI operation.

9. Simple maintenance easy operation. No high technical requirement for Operator.

10. Easy maintenance of spare parts, short time replacement.

Properties

Applicable products	Parts require screw fasten assembling, jujce cap , daily cap
Production speed	2500-10000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depend on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 3kw/hr
Dimension	Varied with different product and output
Weight	About 1500kg
Operator	1set/person
